OEM Factory for Bimetallic Cable Lug - DTL / DTL-2 Bimetal Cable Lug (single or double holes) – WANXIE Detail:

Overview
A cable lug for mounting on the end of a cable for making electrical connection between a conductor of the cable and other electrical equipment. The lug includes a palm for connecting the lug to the electrical equipment, a generally elongate cylindrical barrel for receiving therein one end of the cable conductor, and an insert for disposal within the barrel and for extending around and along the inner surface of the barrel to align the lug more concentrically on smaller cables, preferably with the barrel being conveniently made with uniform wall thickness.

Standard copper cable lugs and inline connectors are used with copper cables and wires in general industrial, commercial and domestic applications.

DTL Bimetal Cable Lug

20210407053625935616-300x300                                        DTL-1--300x300

Application:
Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.

Technique of production:

The transition section between aluminum and copper is produced by friction welding, no breaking welding.

Barrels are supplied capped and filled with jointing compound to avoid oxidation of the aluminum conductor.
Material: 99.9% purity copper & 99.5% purity aluminum.
Final treatment: Acid cleaning

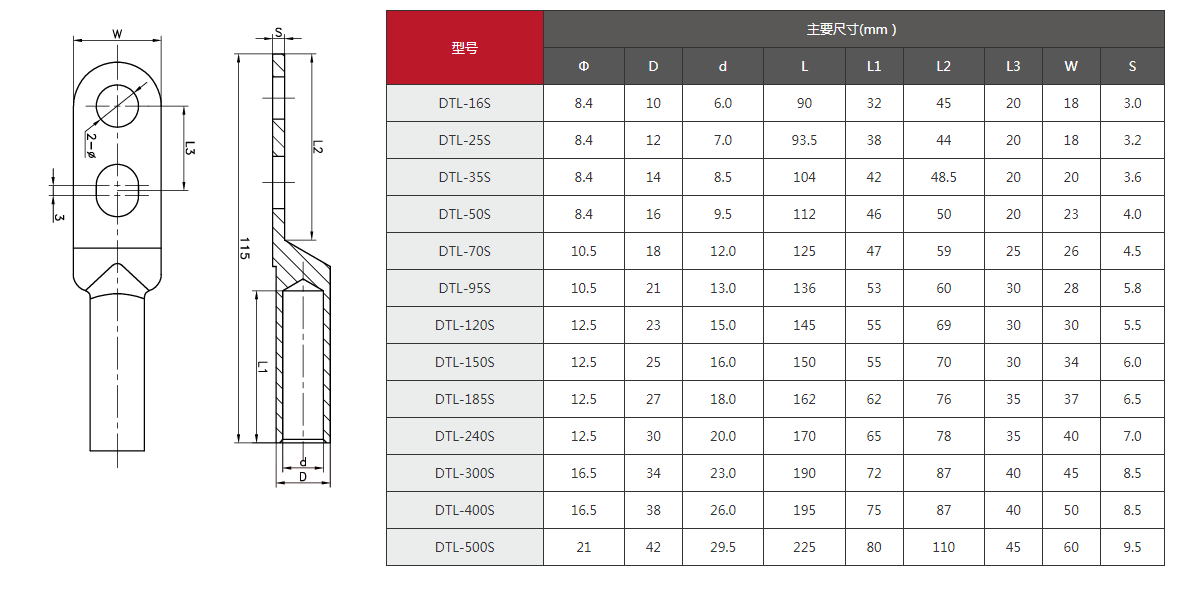

 Introductions for ordering



DTL 单孔

3



DTL-2 Bimetal cable lug

Bimetal-cable-lug-300x300

Barrels are supplied capped and filled with jointing compound to avoid oxidation of the aluminum conductor.
Material: 99.9% purity copper & 99.5% purity aluminum.
Final treatment: Acid cleaning

Selection Table

DTL-2 Bimetal cable lug
Type Main size(mm)
Φ D d L L1
DTL-2-16 8.5 16 5.5 90 42
DTL-2-25 8.5 16 6.5 90 42
DTL-2-35 8.5 16 8.5 90 42
DTL-2-50 12.8 20 9 90 43
DTL-2-70 12.8 20 11 90 43
DTL-2-95 12.8 20 12.5 90 43
DTL-2-120 12.8 25 13.7 118 60
DTL-2-150 12.8 25 15.5 118 60
DTL-2-185 12.8 32 17 120 60
DTL-2-240 12.8 32 19.5 120 60
DTL-2-300 12.8 34 22.5 130 62
DTL-2-400 12.8 41 26.5 145 70
DTL-2-500 47 29.5 200 90
DTL-2-600 47 34 200 90

4

Cable range:16-600mm2
