standard test

Pass the IEC61238-1 Class A test, with good transition and short-term current impact resistance

Component

Main body: special aluminum alloy material, forging process, surface tin plating treatment, plating layer> 7μm
Torque bolt: processed by CNC lathe, with higher precision
Intermediate baffle: The product is divided into oil blocking type and non-blocking type. Only the oil blocking type has a baffle.
Beading: starting from BSM-500/630, the connecting pipe does not have beading

Structural features

▪ Wide application range: suitable for wires from 10mm² to 1000mm², and can be used with almost all types of wires and materials;
▪ Pre-construction design: perfectly fit for heavy-duty cable accessories up to 42KV;
▪ Reliable electrical connection performance: use the set torque screw to press the conductor into the inner bolt of the wiring tube;
▪ Easy installation: compact design, easy to install with standard socket wrench;

Installation

No special tools are required;

Only one socket wrench is required to complete the installation;

Including proving a tab;

The graded torque-double scissors head bolts are designed to ensure reliable and secure contact;

We recommend the use of a support tool (see accessories) to prevent bending of the conductor;

Each connector head or cable lug has a separate mounting instruction.

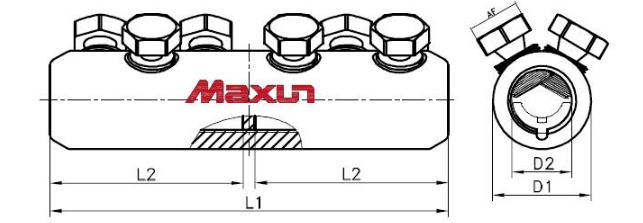

Torque connection selection table

Product model

Wire cross section mm²

Is there

Oil boom

Size(mm)

bolt

Quantity

Bolt head specifications

AF(mm)

L1

D2

D1

D2

BSMB-10/35

10-35

Yes

45

20

19

8.5

2

10

BSM-25/95

25-95

Yes

65

30

24

12.8

2

13

BSM-25/95-U

25-95

no

65

24

12.8

2

13

BSMB-35/150

35-150

Yes

80

35

28

15.8

2

17

BSMU-35/150

35-150

no

80

28

15.8

2

17

BSM-95/240

95-240

Yes

125

60

33

20

4

19

BSM-95/240-U

95-240

no

125

33

20

4

19

BSMB-95/240-34

95-240

Yes

125

60

34

22

4

19

BSMB-120/300

120-300

Yes

140

65

37

24

4

22

BSMU-120/300

120-300

no

140

37

24

4

22

BSM-185/400

185-400

Yes

170

80

42

25.5

6

22

BSM-185/400-U

185-400

no

170

42

25.5

6

22

BSMB-500/630

500-630

Yes

200

95

50

33

6

27

BSMU-500/630

500-630

no

200

95

50

33

6

27

BSMB-800

800

Yes

270

130

56

36

8

27

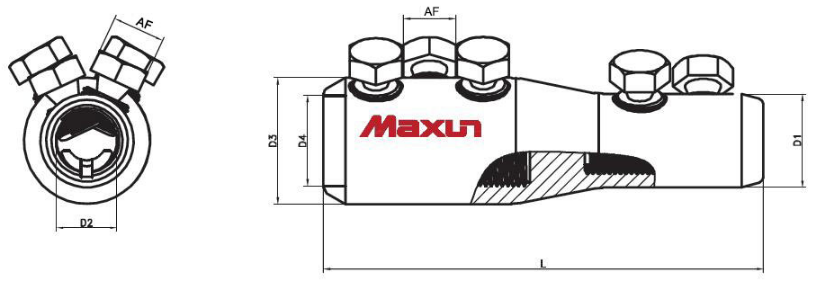

Reducing pipe selection table

Product number

Conductor cross-sectional area mm²

Is there

Oil boom

Size (mm)

Number of bolts

Bolt head specification AF(mm)

Main line

Branch line

L1

D1

D2

D3

D4

Main line

Branch line

Main line

Branch line

BSMB 25/95-95/240

95-240

25-95

Yes

125

24

33

33

20

2

1

19

13

BSMB 95/240-185/400

185-400

95-240

Yes

170

33

42

42

25.5

3

2

22

19

BSMB 185/400-500

500

185-400

Yes

190

42

25.5

46

30

3

3

27

22

BSMB 185/400-630

630

185-400

Yes

200

42

50

50

33

3

3

27

22

BSMB 500-800

800

500

Yes

180

46

56

56

36

4

3

13

13

BSMB 630-800

800

630

Yes

180

50

56

56

36

4

3

13

13

BSMB 630-1000

1000

630

Yes

180

50

60

60

40

4

3

13

13

BSMB 800-1000

1000

800

Yes

180

56

60

60

40

4

3

13

13

BSMB 95/240-34-120/300

120-300

95-240

Yes

140

34

22

37

24

2

2

22

19

BSMB 95/240-34-500

500

95-240

Yes

160

34

22

46

30

3

2

19

13

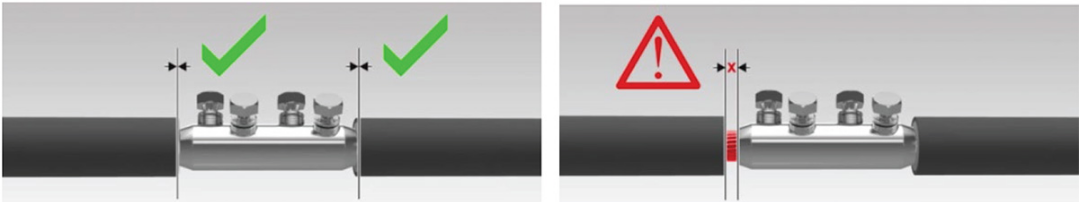

How to cut cables correctly

When installing the splice connector, be sure to insert the wire completely into the tube hole: there is no gap between the cable  and the splice connector
