Copper connecting clamp T Type clamp

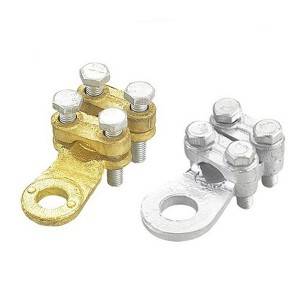

WCJB Copper connecting clamp
Material:99.9% Pure copper
Surface:Tin Plated
It is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment
| WCJB Copper connecting clamp | ||||||||
| Type | Cable range | Main size（mm） | ||||||
| L | L1 | B | B1 | H | H1 | Φ | ||
| WCJB-1 | 16-25 | 39.5 | 16 | 25 | 16.5 | 13.0 | 13.0 | 8.5 |
| WCJB-2 | 25-35 | 45.0 | 16 | 22 | 18.0 | 13.0 | 13.0 | 8.5 |
| WCJB-3 | 35-50 | 52.5 | 18 | 24.5 | 22.0 | 13.5 | 13.5 | 10.5 |
| WCJB-4 | 50-70 | 61.0 | 20 | 31 | 23.0 | 18.5 | 18.5 | 10.5 |
| WCJB-5 | 70-95 | 69.0 | 25 | 35 | 23.5 | 20.0 | 20.0 | 10.5 |
| WCJB-6 | 95-120 | 74.0 | 30 | 42 | 28.5 | 22.5 | 22.5 | 13.5 |
| WCJB-7 | 120-150 | 30 | 30 | 41 | 27.0 | 24.0 | 24.0 | 13.5 |
| WCJB-8 | 150-185 | 76.0 | 30 | 42 | 28.0 | 24.5 | 24.5 | 13.5 |
| WCJB-9 | 185-240 | 80.0 | 32 | 44 | 30.0 | 25.0 | 25.0 | 13.5 |
T Type clamp
T-clamp is mainly used for overhead power lines or substations, in which the busbar leads the current branch in a T-shaped way.Split bolt type and compression type, for small section of the wire can also be used as a parallel line clamp or clamp oval connector As a T – type connection
| T Type clamp | |||||||
| Type | Cable range | Main size（mm） | Weight | ||||
| Bus line | Conductor | Φ1 | Φ2 | H | L | ||
| TL-45 | 185-240 | 300-400 | 22.0 | 28.0 | 210 | 118 | 2.6 |
| TL-53 | 300-400 | 120-150 | 28.0 | 17.5 | 168 | 2.6 | |
| TL-54 | 300-400 | 185-240 | 28.0 | 22.0 | 168 | 2.7 | |
| TL-55 | 300-400 | 300-400 | 28.0 | 28.0 | 196 | 3.0 | |
| TL-56 | 300-400 | 500-630 | 28.0 | 34.5 | 196 | 3.1 | |
| TL-64 | 500-630 | 185-240 | 43.5 | 22.0 | 196 | 3.3 | |
| TL-65 | 500-630 | 300-400 | 43.5 | 28.0 | 196 | 3.4 | |
| TL-66 | 500-630 | 500-630 | 43.5 | 34.5 | 196 | 3.6 | |
