2021 China New Design Bimetal Shear Bolt Connector - Shear bolt lug – WANXIE Detail:

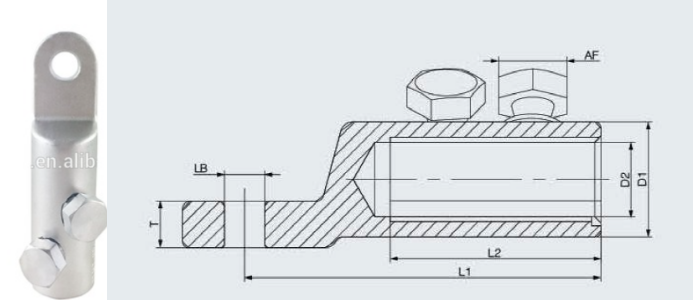

Shear bolt lug
Type Cable range  (mm²) Mounting hole diameter Size Contact  bolt Bolt head size
Insert length   Outside diameter Cabe bore Qty. AF
LB L1 L2 D1 D2
BLMT-25/95-13 25-95 13 60 30 24 12.8 1 13
BLMT-35/150-13 35-150 13 86 35 28 15.8 1 17
BLMT-95/240-13 95-240 13 112 60 33 20 2 19
BLMT-120/300-17 120-300 17 115 65 37 24 2 22
BLMT-185/400-17 185-400 17 137 80 42 25.5 3 22
BLMT-500/630-17 500-630 21 150 95 50 33 3 27
BLMT-630/800-21 630-800 21 180 120 58 37.5 4 27
BLMT-1000-21 1000 21 200 130 68 42 4 27

Mechanical Shear Bolt Lugs it doesn’t need hydraulic tool but a spanner to finish installation.The special eccentric design for round conductorensures enough anti-wrench stregth and conductivity. The bolts and nuts are specially designed to install on large range of conductor.The barrel capped is filled with joint compound to avoid oxidization.


Product detail pictures:

2021 China New Design Bimetal Shear Bolt Connector - Shear bolt lug – WANXIE detail pictures

2021 China New Design Bimetal Shear Bolt Connector - Shear bolt lug – WANXIE detail pictures

2021 China New Design Bimetal Shear Bolt Connector - Shear bolt lug – WANXIE detail pictures
